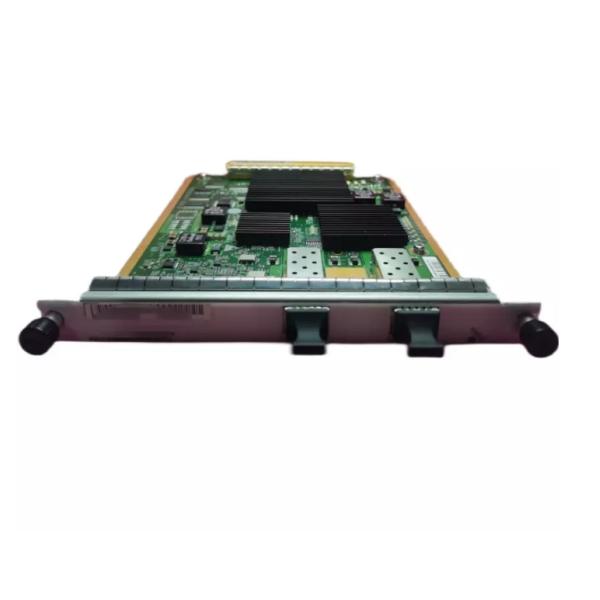

CR5D0L2XFA70 GPON Optical Line Terminal 2 Port 10GBase SFP Flexible Card

Name: CR5D0L2XFA70 GPON Optical Line Terminal 2 Port 10GBase SFP Flexible Card
Brand: HuaWei
Price: 1 USD

Brand Name : HuaWei

Model Number : CR5D0L2XFA70

Certification : FCC,CCC,CE

Place of Origin : Guangdong, China

MOQ : Negotiable

Price : Negotiable

Model number : CR5D0L2XFA70

Description : 2-Port 10GBase LAN/WAN-SFP+ Flexible Card A(P50-A,Occupy one sub-slot)

Net Dimension(D*W*H mm) : 200*169*18mm

Typic Power(W) : 18.4W

Product Series : NE80E(Enterprise Network)

Attributes : Hardware

Warranty : 1 Year

Product Family : Router

Contact Now

CR5D0L2XFA70 GPON Optical Line Terminal 2 Port 10GBase SFP Flexible Card

CR5D0L2XFA70 New HuaWei NE40E-X8 2-port 10GBase LAN/WAN-SFP+ flexible card P50-A(P50-A Occupy one sub-slot)

HuaWei CR5D0L2XFA70 Board Product Overview

HuaWei CR5D0L2XFA70 Board is 2-Port 10GBase LAN/WAN-SFP+ Flexible Card A(P50-A.Occupy one sub-slot) for NE40 Series Rourer.

HuaWei CR5D0L2XFA70 Board is based on a 2T hardware platform design, a large-capacity 2T routing line card, a mature wide-area SDN solution, a programmable NP chip and a VRP software platform, and features high performance, low power consumption, and evolution. The leading SRv6 technology realizes the intelligent connection of the network, and can be applied to the core nodes of enterprise WAN, large enterprise access nodes, campus interconnection and convergence nodes, and various large IDC network outlets.

NE40E supports innovative IP hard pipe technology to provide enterprises with high-quality IP dedicated line solutions. Strictly isolate soft and hard pipes through hardware to ensure that the bandwidth of hard pipes is not preempted. Realize rigid pipes similar to SDH. At the same time, IP FPM technology is used to realize flow-level service quality perception. Graphical displays are provided through network management and uTraffic to monitor business operation status in real time. , Realize the controllable, manageable and visible IP dedicated line business.

HuaWei CR5D0L2XFA70 Board Product Specification

Brand	HW
Part Number	03030NSK
Model	CR5D0L2XFA70
Description	2-Port 10GBase LAN/WAN-SFP+ Flexible Card A(P50-A,Occupy one sub-slot)
Attributes	Hardware
Category	Line Card
Product Line	Networking
Product Family	Router
Overview	Line Card
Sub Product Family	NetEngine NE80E Router
Product Series	NE80E(Enterprise Network)
UOM	PCS
Net Dimension(DWH mm)	20016918
Typic Power(W)	18.4

HuaWei CR5D0L2XFA70 Board Product Feature

Equipment-level reliability: NE40E provides redundant backup of key components. Key components support hot swap and hot backup, NSR (Non-Stop Routing), NSF (Non-Stop Forwarding) and ISSU and other technologies to ensure uninterrupted business operation. NE40E supports 200ms packet buffer, no packet loss during burst traffic, ensuring high-quality service experience for users.
Network-level reliability: NE40E provides IP/LDP/VPN/TE fast rerouting/Hot-Standby, IGP, BGP and multicast routing fast convergence, virtual routing redundancy protocol (VRRP, Virtual Router Redundancy Protocol), fast ring network protection protocol (RRPP, Rapid Ring Protection Protocol), TRUNK link sharing and backup, hardware BFD link 3.3ms fast detection, MPLS/Ethernet OAM, routing protocol/port/VLAN Damping and other technologies to ensure the stability of the entire network and provide end-to-end 200ms protection switching, no service interruption.
Service-level reliability: The VPN FRR and E-VRRP technologies provided by NE40E, VLL FRR and Ethernet OAM technologies, and PW Redundancy and E-Trunk or E-APS technologies can be applied to L3VPN and L2VPN networking solutions to ensure redundancy at the service level. Excessive backup makes the business stable and reliable without interruption.

HuaWei CR5D0L2XFA70 Board Product and More Service Unit

03030LYU	CR5D0EEGFE70	20-port 1000Base-X-SFP flexible card E (P40-E)
3053421	CR5D00L8XX70	8-port 10GBase LAN/WAN-XFP integrated line processing board (LPUI-41)
3053422	CR5D00L4XX71	4-port 10GBase LAN/WAN-XFP integrated line processing board (LPUI-41)
3053542	CR5D0L4XXA70	4-port 10GBase LAN/WAN-XFP integrated line processing board (LPUI-41, support 1588v2)
3053423	CR5D00EMGF70	48-port 100/1000Base-X-SFP integrated line processing board (LPUI-41)
3053543	CR5D0EKGFA70	40-port 100/1000Base-X-SFP integrated line processing board (LPUI-41, support 1588v2)
3053420	CR5DL2XEFG70	2-port 10GBase LAN/WAN-XFP and 24-port 100/1000Base-X-SFP integrated line processing board (LPUI-41)
3053544	CR5DL2XEEG7A	2-port 10GBase LAN/WAN-XFP and 20-port 100/1000Base-X-SFP integrated line processing board (LPUI-41, support 1588v2)
3054447	CR5DLPUF5070	Flexible card line processing board (LPUF-50, 4 sub-slots)
03030NSK	CR5D0L2XFA70	2-port 10GBase LAN/WAN-SFP+ flexible card A (P50-A, occupying a sub-slot)
03030PTB	CR5D00C8CF71	8-Port Channelized STM-1c POS-SFP Flexible Card (P50)
03030PVG	CR5D00C4CF70	4-Port Channelized STM-1c POS-SFP Flexible Card (P50)
3054393	CR5DLPUF5170	Flexible card line processing board (LPUF-51,2 sub-slots)
03030QKN	CR5D0EEGEA70	20-port 10/100/1000Base-RJ45 flexible card A (P51-A)
03030PMC	CR5D0L5XFA70	5-port 10GBase LAN/WAN-SFP+ flexible card A (P51-A, occupying 2 sub-slots)
03030PME	CR5D0L2XFA71	2-port 10GBase LAN/WAN-SFP+ flexible card A (P51-A)
03030PMA	CR5D0EFGFA70	24-port 100/1000Base-X-SFP flexible card A (P51-A)
03030PYG	CR5D0L5XFE70	5-port 10GBase LAN/WAN-SFP+ flexible card E (P51-E, occupying 2 sub-slots)
03030PYF	CR5D0L2XFE70	2-port 10GBase LAN/WAN-SFP+ flexible card E(P51-E)
03030PYE	CR5D0EFGFE70	24-port 1000Base-X-SFP flexible card E (P51-E)
3054395	CR5D0L5XFA71	5-port 10GBase LAN/WAN-SFP+ integrated line processing board (LPUI-51)
3054397	CR5D0L4XFA70	4-port 10GBase LAN/WAN-SFP+ integrated line processing board (LPUI-51)
3054412	CR5DL2XEFG7A	2-port 10GBase LAN/WAN-SFP+ and 24-port 100/1000Base-X-SFP integrated line processing board (LPUI-51)
3054400	CR5D0EMGFA70	48-port 100/1000Base-X-SFP integrated line processing board (LPUI-51)
3054520	CR5D0L5XFA7L	5-port 10GBase LAN/WAN-SFP+ integrated line processing board L (LPUI-51-L)
3054528	CR5D0EMGFA7L	48-port 100/1000Base-X-SFP integrated line processing board L (LPUI-51-L)
