FCC GPON Optical Line Terminal HuaWei Router NE40E X8 Interface Board

Name: FCC GPON Optical Line Terminal HuaWei Router NE40E X8 Interface Board
Brand: HuaWei
Price: 1 USD

Wholesale FCC GPON Optical Line Terminal HuaWei Router NE40E X8 Interface Board from china suppliers

Brand Name : HuaWei

Model Number : CR53-P10-8xPOS/STM4-SFP

Certification : FCC,CCC,CE

Place of Origin : Guangdong, China

MOQ : Negotiable

Price : Negotiable

Model number : CR53-P10-8xPOS/STM4-SFP

Description : 8-port OC-12c/STM-4c POS-SFP flexible card

Weight (without packaging materials) : 0.5 kg

TYPICAL POWER CONSUMPTION : 22.4 W

Typical Heat Dissipation : 72.68 BTU/hour

Storage temperature : -40°C to +70°C(-40°F to 158°F)

Dimensions (w x d x h, without packaging) : 169 mm x 189.9 mm x 18.4 mm

Warranty : 1 Year

Contact Now

FCC GPON Optical Line Terminal HuaWei Router NE40E X8 Interface Board

HuaWei router NE40E-X8 series interface board CR53-P10-8xPOS/STM4-SFP (8-port OC-12c/STM-4c POS-SFP flexible card)

Overview

CR53-P10-8xPOS/STM4-SFP Basic Information

Attribute	Description
Description	8-port OC-12c/STM-4c POS-SFP flexible card
Part number	03030JUB
Model	CR53-P10-8xPOS/STM4-SFP
Veneer category	Flexible card insertion
Silk screen printing	FPIC-8xOC12-POS

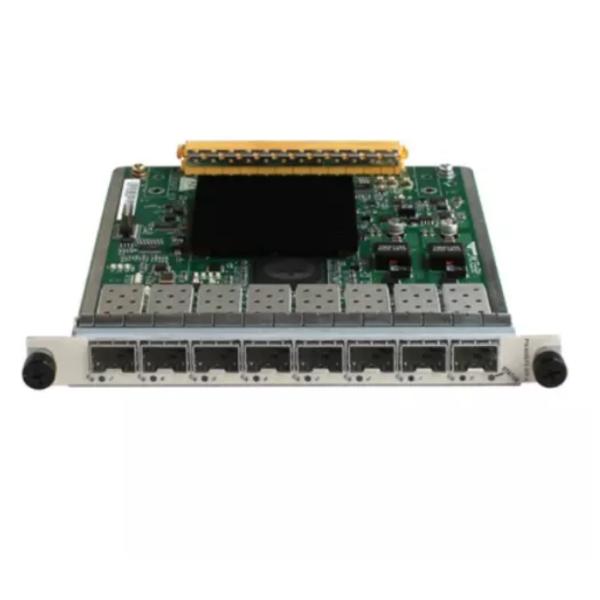

CR53-P10-8xPOS/STM4-SFP appearance

CR53-P10-8xPOS/STM4-SFP LED Description

Led silkscreen	The name of the led	Led color	Led status	Status description
L/A	Port connection/data sending and receiving status led	Green	Solid on	Indicates that the link is already connected.
		Green	Flashing	Indicates that there is data sent and received.
		-	Always extinguished	Indicates that the link is not connected.
STATUS	STATUS INDICATOR	Green	Flash, flash twice per second (2Hz)	Indicates that the device is not yet registered while booting.
STATUS	STATUS INDICATOR	Green	Slow flashing, flashing every two seconds (0.5Hz)	Indicates that the system is in a healthy state.

CR53-P10-8xPOS/STM4-SFP interface description

The interface name	Connector type	Description	Parts that can be used
0~7	SFP	622M POS OPTICAL SIGNAL INPUT AND OUTPUT INTERFACE	622Mbps eSFP optical module

CR53-P10-8xPOS/STM4-SFP interface properties

Attribute	Description
Working mode	Full duplex
Complies with standards	IEEE 802.3
Support frame formats	PPP,HDLC

CR53-P10-8xPOS/STM4-SFP functions and features

Functions and features	Description
Basic functionality	SUPPORTS WIRE-SPEED DELIVERY AND RECEIVING OF 8 622M POS PORTS.
Reliability and availability	Hot-swappable support.
Whether hashing is supported	Not
Whether port rate adaptation is supported	Not
Link protocol	PPP,HDLC

CR53-P10-8xPOS/STM4-SFP Specifications

Project	Description
Dimensions (w x d x h, without packaging) [mm]	169 mm x 189.9 mm x 18.4 mm
Weight (without packaging materials) [kg]	0.5 kg
TYPICAL POWER CONSUMPTION [W]	22.4 W
Typical Heat Dissipation [BTU/hour]	72.68 BTU/hour
LONG-TERM OPERATING AMBIENT TEMPERATURE [°C]	0°C~45°C
SHORT-TERM OPERATING AMBIENT TEMPERATURE [°C]	-5°C~55°C

FCC GPON Optical Line Terminal HuaWei Router NE40E X8 Interface Board
